Mavic Wheel Identification chart

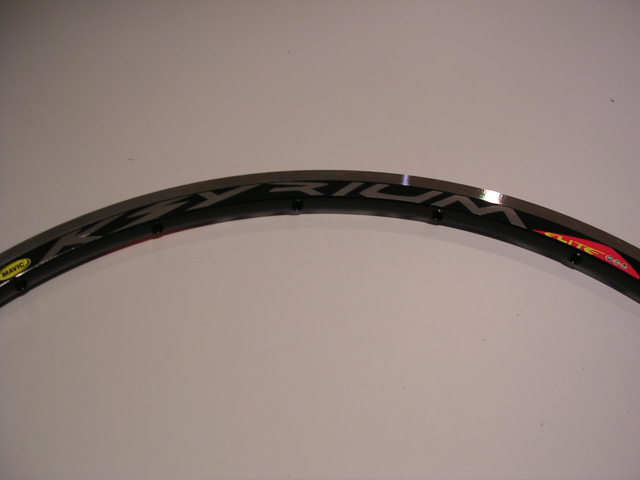

KSYRIUM ELITE 2002-2004

FEATURES: 18 HOLE FRONT, 20 HOLE REAR. SCREWED EYELETS. NOTE: BLACK ONLY!
FRONT- RADIAL LACED, STRAIGHT PULL SPOKES
REAR- CROSSED BOTH SIDES, STRAIGHT PULL SPOKES.

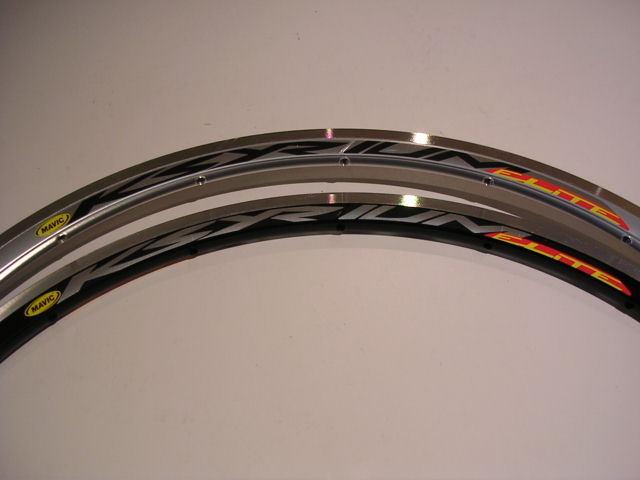

	KSYRIUM ELITE 2005-2006

FEATURES: 18 HOLE FRONT, 20 HOLE REAR. FORE DRILLING.
FRONT-RADIAL LACED, STRAIGHT PULL SPOKES, INTEGRATED NIPPLES
REAR-CROSSED BOTH SIDES, STRAIGHT PULL SPOKES, INTEGRATED NIPPLES.

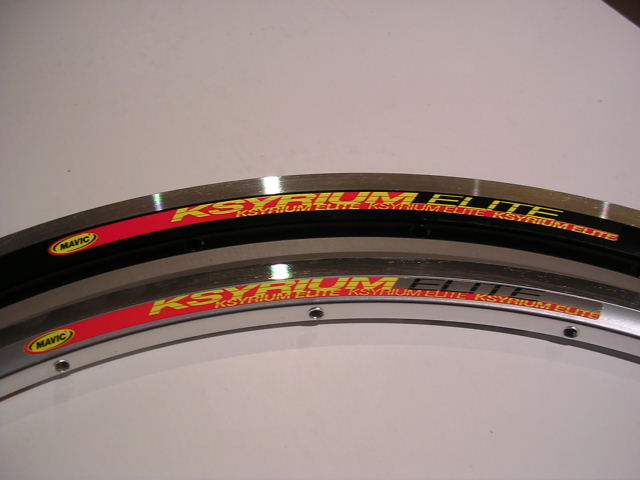

	KSYRIUM ELITE 2007-2008

FEATURES: 18 HOLE FRONT, 20 HOLE REAR, FORE DRILLING.
FRONT- RADIAL LACED, STRAIGHT PULL SPOKES, INTEGRATED NIPPLES. BLACK SPOKES HAVE BLACK NIPPLES.
REAR- RADIAL LACED DRIVE SIDE, CROSSED NON-DRIVE SIDE, INTEGRATED NIPPLES. BLACK SPOKES HAVE BLACK NIPPLES.

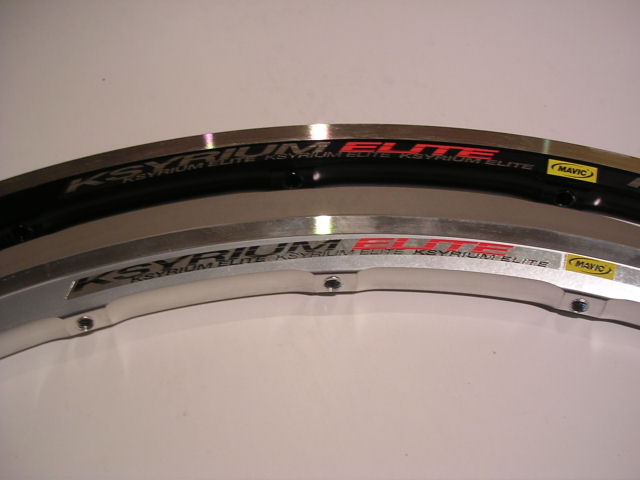

	KSYRIUM ELITE 2009-2010

FEATURES: 18 HOLE FRONT, 20 HOLE REAR. FORE DRILLING. ISM (INTERSPOKE MILLING).
FRONT- RADIAL LACED, STRAIGHT PULL SPOKES, INTEGRATED NIPPLES. NOTE: BLACK SPOKES HAVE SILVER NIPPLES.
REAR- RADIAL LACED DRIVE SIDE, CROSSED NON-DRIVE, INTEGRATED NIPPLES. NOTE: BLACK SPOKES HAVE SILVER NIPPLES.


	KSYRIUM ELITE 2011

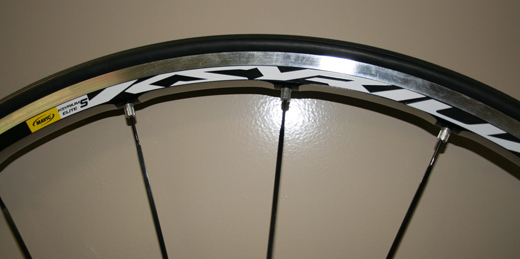

	KSYRIUM ELITE S 2013
